    SR10S/ SR30S/ SRK101S/ ISC80S/ PRG2000S

    SR10S/ SR30S/ SRK101S/ ISC80S/ PRG2000S
    Contact us for Availability and Price Quotation
    Quantity
    Name
    Email
    Phone
    City
    Address
    Message
    Anti-Spam Validation


    Product Details

    Common

    • 13.56MHz (MIFARE) Contactless IDTECK Credential Smart Card Reader
    • Read Range : Up to 4 inch(10cm)
    • ISC80S Smart Card Read Only
    • IDTECK Credential ID Number Reading of Smart Card (ISC80S)
      Programmed by IDTECK (Without PRG2000S*)
    • IDTECK Credential ID Number Reading of Smart Card (Mifare)
      Programmed by PRG2000S* (With PRG2000S*)
      (With PRG2000S*, ID number control by user with secure access key)
    • 34 bit Wiegand & RS232 Output(Default) With PRG2000S*, various
      Wiegand & ABA Track II Output Programmable

    Benefits
    • High Security Level : ID number control by user or IDTECK with
      secure access key
    • Convenient Card Registration : Since user or IDTECK control the ID
      number, card IDs are known and are in serial.
    • Business Protection : Without data sector and access key
      information, other supplier could not make compatible reader or cards.
    Application
    • Access Control
    • Time & Attendance

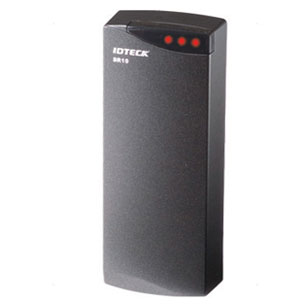

    SR10S
    • 3 Array LED indicators (Red and Green) and Beeper
    • External LED Control
    • External Buzzer Control
    • Easy to install on Mullion Mount
    • Solid Epoxy Potted (Weather-proof / IP65, IP66), Warranty (Life Time)
    SR30S
    • 7 Array LED Indicators (Red and Green) and Beeper
    • External LED Control
    • External Buzzer Control
    • Wall Mount (US, EU, Asian Gang Box Size)
    SRK101S
    • 3 Array LED indicators (Red, Green and Yellow) and Beeper
    • External LED Control
    • External Buzzer Control
    • 12 Numeric Keypads with Back Lighting
    • Tamper Switch
    • Wall Mount (US, EU, Asian Gang Box Size)
    • Reverse Polarity Protection
    • Options: 3ea of External LED Control
    ISC80S (13.56MHz Contactless IDTECK Credential Smart Card )
    • ID number written by IDTECK with secure access key
    PRG2000S>
    (13.56MHz Contactless Smart Card User Credential Programmer)

    • ID number control by user with secure access key.
    • Various Wiegand & ABA Track II Output Programmable
